150LX + DC7 YOKE

150LX + DC7 YOKE

$564.95
Part Number:240.1504.07.M Manufacturer: Hollis

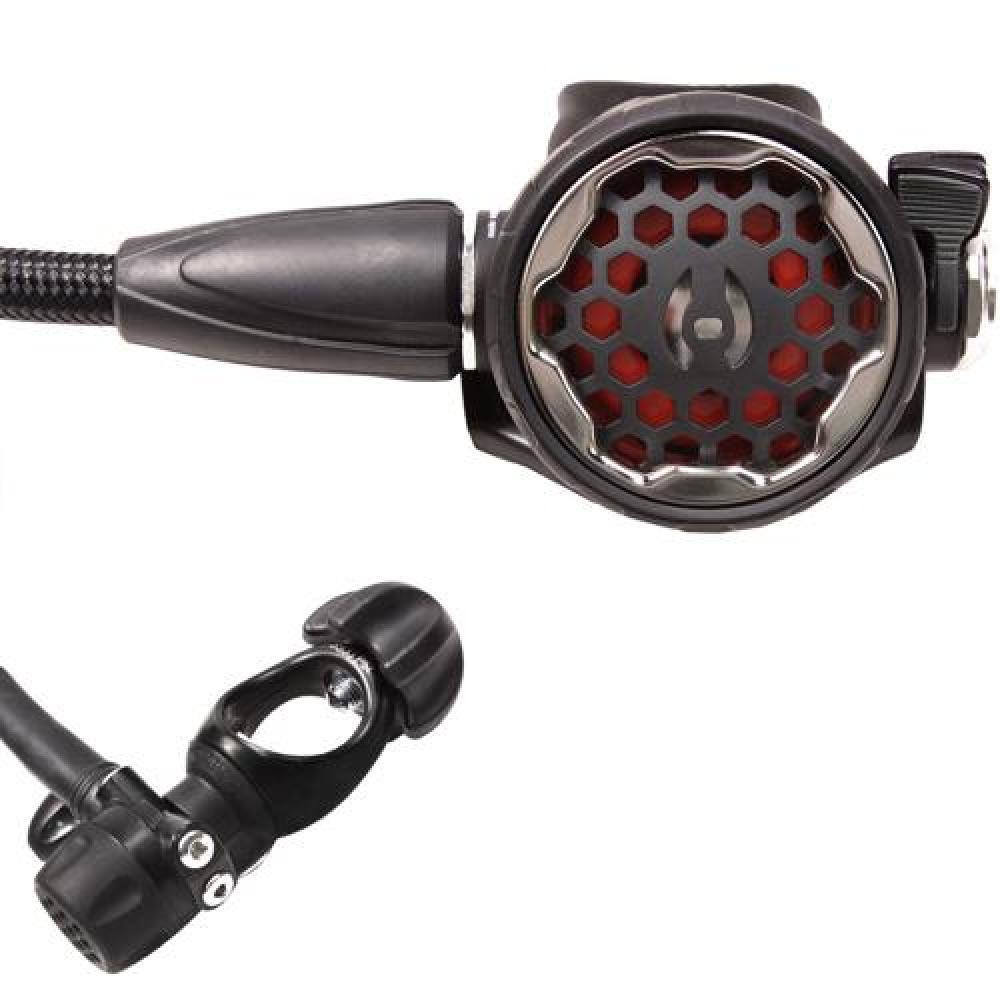

About Hollis 150LX DC7 Regulator

The Hollis 150LX Regulator, a moderately-priced addition to the Hollis line, features a design similar to the 200LX without PVD Plating. Paired with the DC2 DIN or Yoke first stage, it's ideal for global travel or long deco stops. The 150LX includes a stainless steel front ring, packing nut, and end cap, and comes standard with a 30" (76.2 cm) MiFlex hose and an orthodontic mouthpiece with dual color tabs.

The compact Hollis DC2 1st Stage Regulator boasts an over-balanced diaphragm design, providing superior gas delivery under extreme conditions. Its diaphragm membrane prevents contaminants from entering the mechanism, reducing corrosion and performance deterioration. The DC2 also features a secondary diaphragm sealing off the spring chamber, adding another layer of corrosion resistance and preventing first stage icing. The regulator has four LP ports with 3/8" threads and two HP ports with 7/16" threads, is made of forged marine-grade chrome-plated brass, and is Nitrox compatible up to 40% out of the box.

The pneumatically balanced 150XL Second Stage Regulator ensures smooth, easy breathing due to its chrome-plated brass valve. It has a reversible demand valve, allowing for right or left-handed hose configurations, and an adjustable Dive/Pre-Dive switch with a soft rubber grip. The ergonomic design channels bubbles away from the field of view and reduces exhaust effort. The improved orthodontic mouthpiece features dual color tabs and a stainless steel ring. A CD owner's manual is included.

Hollis 150LX DC7 Regulator Features

Hollis 150LX DC7 Regulator:
Meets Rigorous CE Standard for Coldwater Performance
30" (76.2 cm) 3/8" Threaded Maxflex Hose
Lightweight, Flexible, Braided Hose
Designed to Outperform and Outlive Traditional Rubber Hoses
CD Owner's Manual

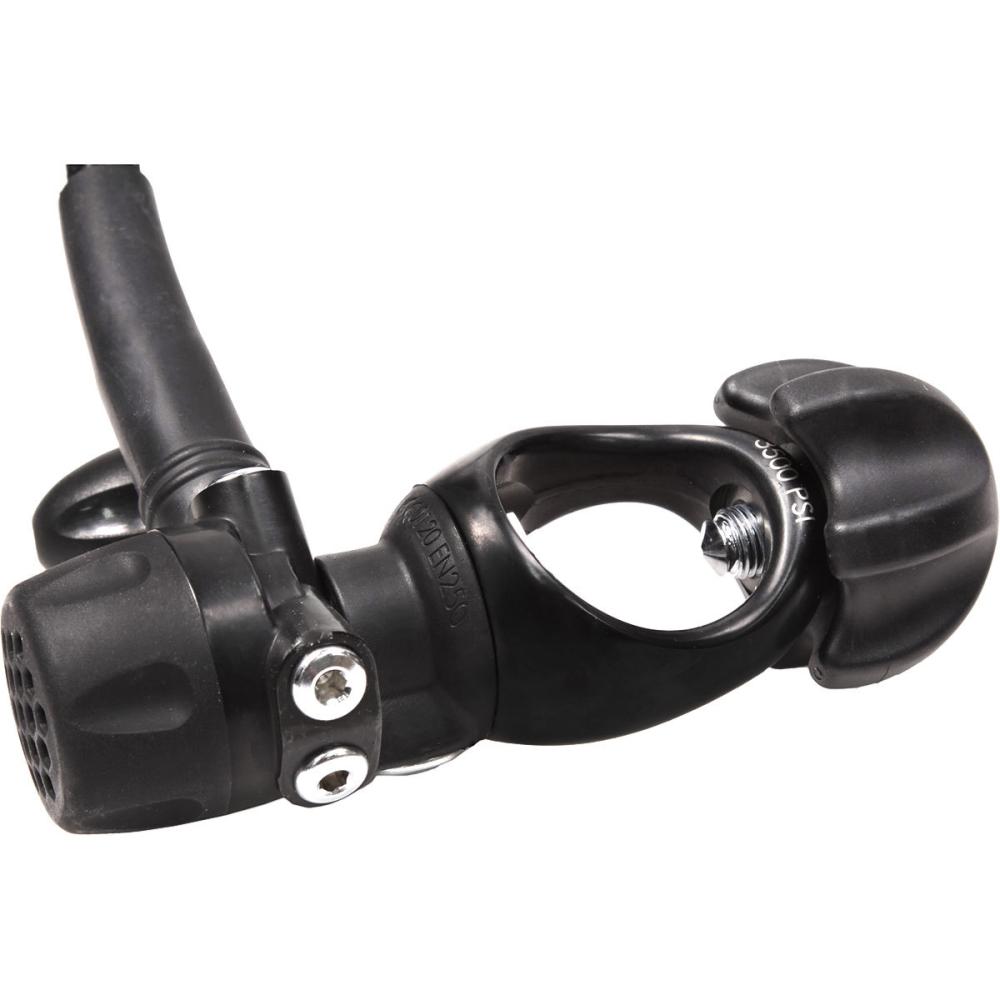

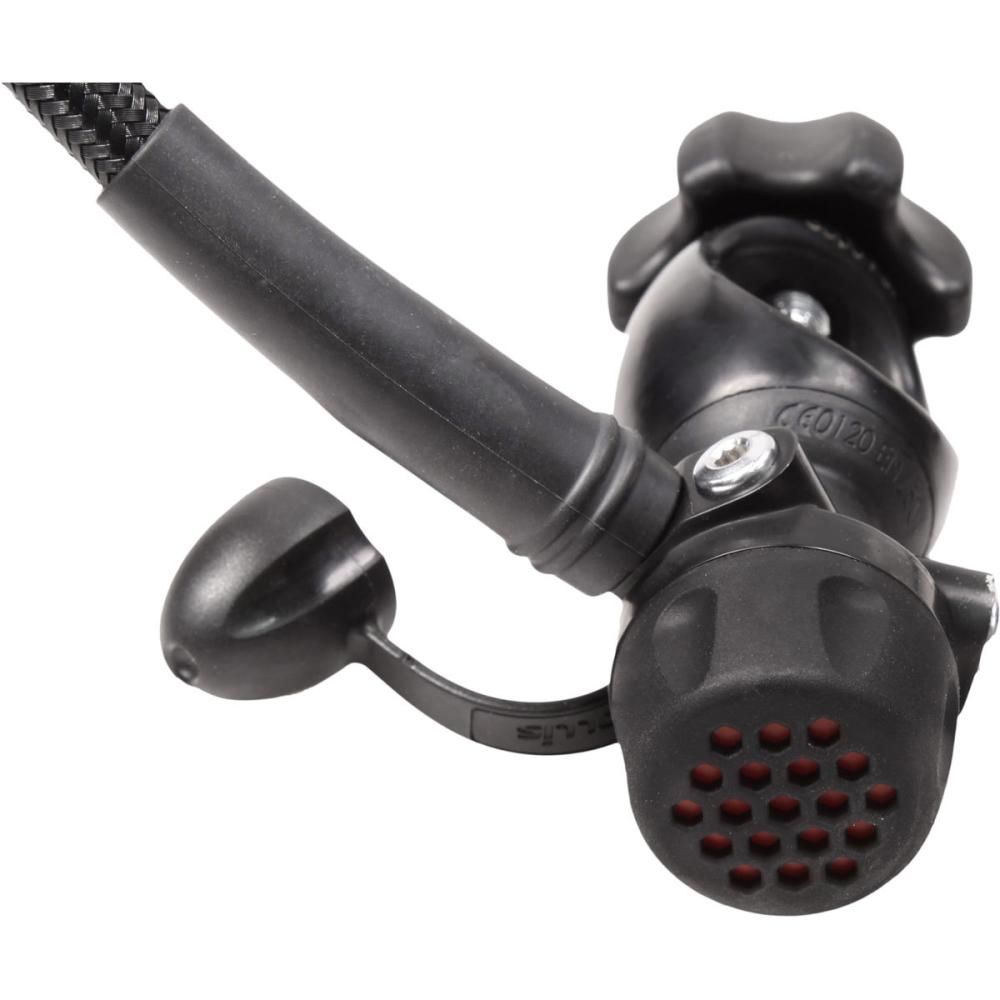

First-Stage Regulator: Hollis DC2, Yoke
Over-Balanced Diaphragm Regulator Design
Provides Progressively Greater Intermediate Pressure with Increased Depth and Gas Density
Superior Gas Delivery Under Most Extreme Conditions
Dual Diaphragm Design: Completely Seals Internal Components from Environment
Environmental Sealing Prevents Icing
4 Low Pressure Ports (LP) with 3/8" Threads
2 High Pressure Port (HP) with 7/16" Threads
Material: Forged Marine-Grade Chrome Plated Brass
Compact & Streamlined Design
Ultimate Control Over Internal Air Path for Superior Air Delivery
Nitrox Compatible to 40% Out-of-the-Box
Weight: 35.2 oz. (998 g)

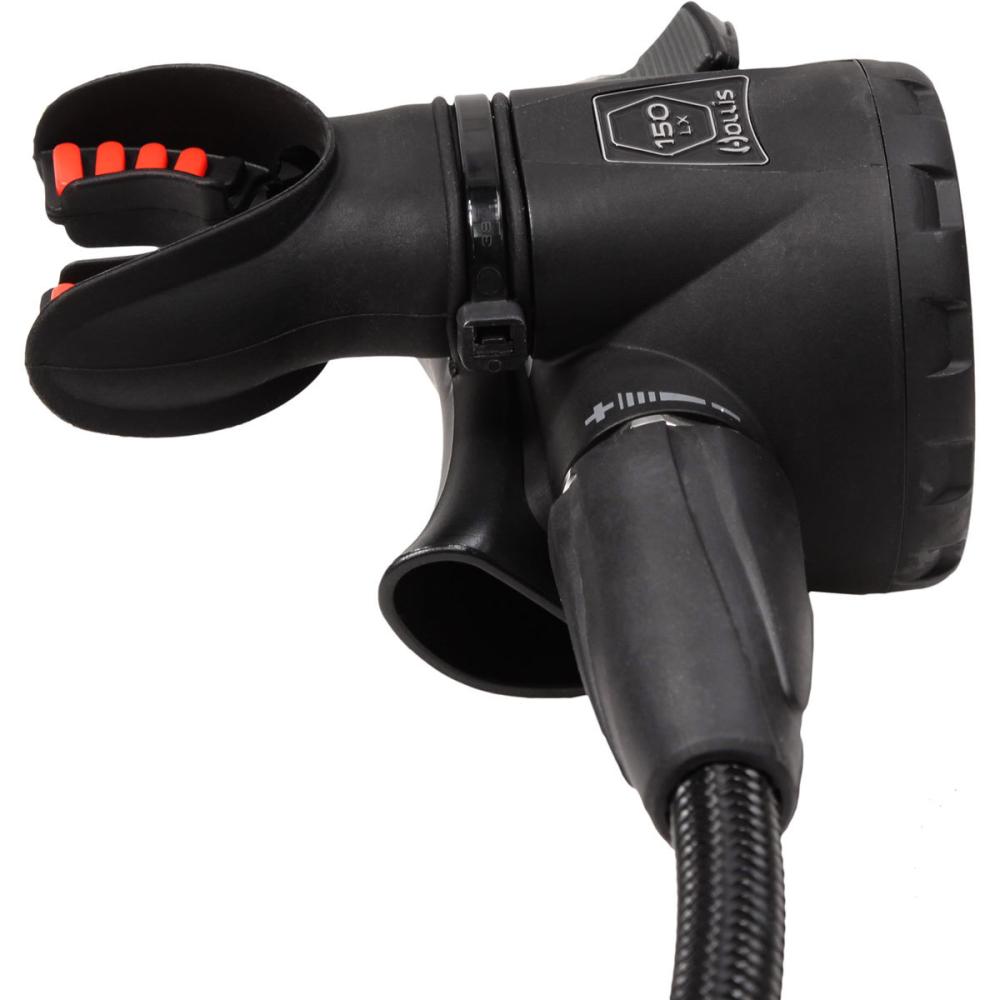

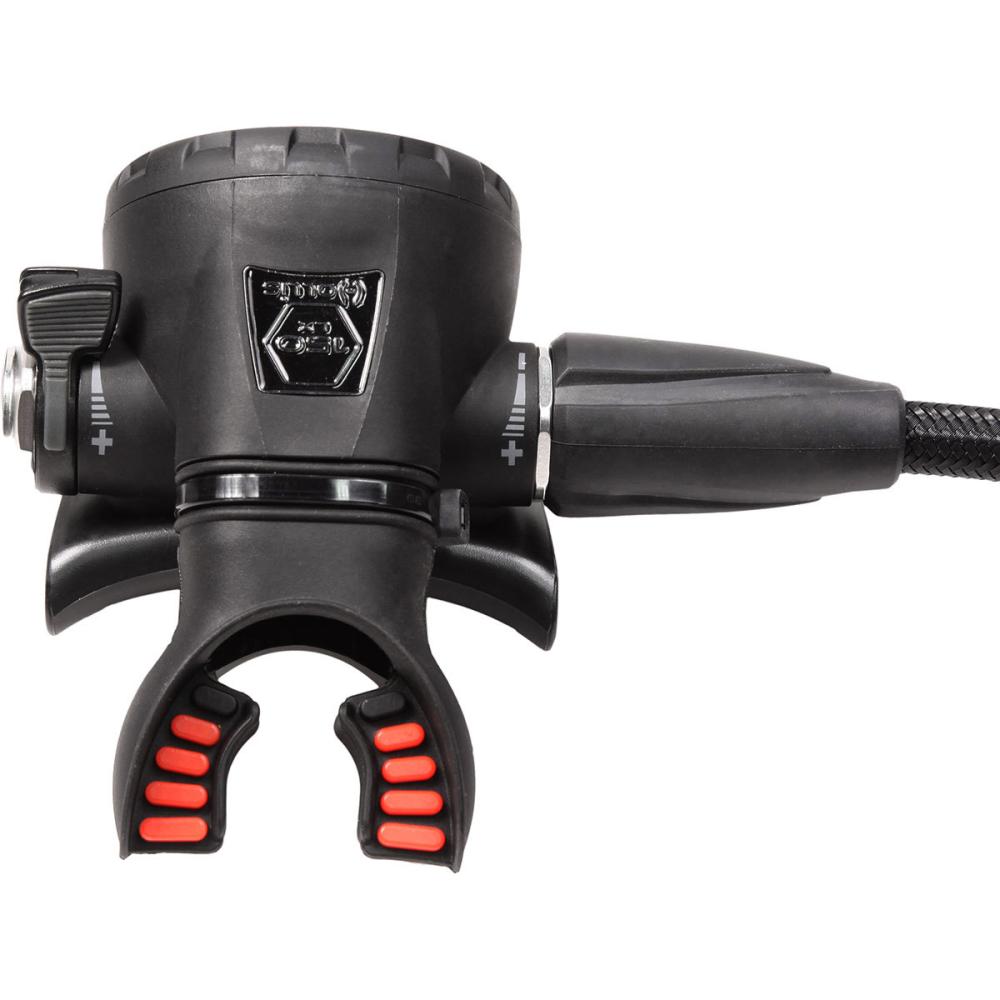

Second Stage Regulator: Hollis 150LX
Lightweight ABS/Polycarbonate Housing
Pneumatically Balanced Demand Valve Design
Chrome-Plated Brass Valve, Stainless Steel Cover Ring & Packing Nut & End Cap
Smooth, Easy Breathing
Adjustable Venturi System (A.V.S.)
AVS: Simple Dive/Pre-Dive Switch Adjust Inhalation Effort
AVS: Prevents Free-Flow During Shore Entries or Long Surface Swims
Patented Silicone Rubber Orthodontic Mouthpiece
Mouthpiece Provides Comfort and Reduced Jaw Fatigue
Large Venturi Lever w/Soft Rubber Grip, Easy to Locate and Use
Improved Silicone Rubber Orthodontic Mouthpiece w/Dual Color Tabs
Ergonomic Exhaust: Channels Bubbles Away from Field of View
Exhaust Design: Reduces Exhaust Effort

Warranty Information

This product has a limited warranty of 24 months.

http://www.hollis.com/support/warranty/
510-729-5110

Hollis 150LX DC7 Regulator Specifications

1'st Stage Type

Over-Balanced Diaphragm

LP Ports

Four 3/8" Threaded

HP Ports

Two 7/16" Threaded

Adjustable 2'nd Stage

Yes, Venturi Dive/Pre-Dive Switch

NITROX Compatible

Yes

2'nd Stage Type

Pneumatically Balanced

Materials

First Stage: Forged Marine-Grade Chrome Plated Brass, Second Stage: Housing, ABS/Polycarbonate, Valve Body: Chromed Brass, Cover Ring and Packing Nut: Stainless Steel

Hose Thread

3/8"

Hose Length

30" (76.2 cm)

UPC Code

020545211044
